Opções de Equipamentos

Measurement of the gas volume based on the flow velocity when purging of gas lines in combination with the Mobile Gas Flare S (402280), the Mobile Gas Flare M (402380) and the Mobile Gas Flare L (402480). This option requires the pressure measurement option (282124 or 282135) for the OLLI (280000/280040/280060). The V measurement for propane only works with the Sensor Array option (282102), NOT with the Dual IR Sensor option (282103).

The option package includes the use of the additional functions “option remote control“ and „option air volume measurement“ in the smart memo. The period of use is one year. The annual fee is due on date of order in terms of prepaid charges. After expiration of the period of use the option package will be inactivated. A new or subsequent order of the option package can be placed at any time. The annual fee can be payed for multiple years in advance. This option package can only be used in conjunction with the motor test pumps MPP 30-30/ MPP 70-35 and the smart memo. Another requirement is the option „flow measurement“ in the MPP 30-30/MPP 70-35. The following services are included: Option remote control This option means that the smart memo and the MPP 30-30/MPP 70-35 can communicate with each other and exchange measured values. Test sequences for water pressure tests can be carried out partially automated. The smart memo controls the pump and starts/ stops the pressure control/maintenance at the right time. Option air volume measurement With the help of this option in combination with the MPP 30-30/MPP 70-35 a determination of the residual air in the tested pipe is performed. Directly after the end of the pressure build-up phase, a rating for the absence of air in the pipe is displayed. With the air volume measurement, the smart memo can detect critical high air contents at an early stage and the user is spared unnecessary time and effort. This option can currently only be configured after the LTE-GPS Option (222610) has been selected.

Menu-guided test sequences for performing pressure tests on wastewater pipes and manholes in accordance with the regulations EN 1610 (Europe), DWA-A 139 (Germany) and DWA-M 149-6 (Germany). This option includes the following menu items in the device: Wastewater Procedure Air : Performing tests with air as the test medium in accordance with the regulations mentioned. EDS2-P 1 bar pressure sensor required. Wastewater Procedure Water: Performing tests with water as the test medium in accordance with the regulations mentioned. The EDS2 level probe is required, and optionally, a smart level control.

Annual fee for sending measurements via the Esders Connect app (Android, iOS, Windows) by means of a flat rate. The annual fee must be paid in advance (prepaid) and is due at the time of booking. It is device-specific, can be renewed at any time and can also be paid for several years in advance in order to plan the period of use long-term. When the term expires, measurements can still be sent. However, these are billed individually and debit the measurement quota. The credit for this can be recharged via the measurement package (item 222550).

In combination with the Esders Connect app (Android, iOS, Windows) enables the live measured values of the device to be displayed on a smartphone, tablet or PC (Android, iOS, Windows). The zero point can also be set manually and the alarm deactivated. The function only applies to the "above-ground testing" use case.

Annual fee to activate the following additional functions: 1. sending measurements via the Esders Connect app (Android, iOS, Windows) in the form of a flat rate. 2. activation of a live measurement in the smart memo. The live measurement includes a data transmission of measured values during an ongoing test in order to be able to observe the measurement progress remotely. The data transfer takes place at regular intervals, depending on the test in progress. The annual fee must be paid in advance (prepaid) and is due at the time of booking. It applies per measuring device, can be renewed at any time and can also be paid for several years in advance in order to plan the period of use in the long term. Once the term has expired, measurements can still be sent. However, these are billed individually and charge the metering quota. The credit for this can be topped up using the measurement package (item 222550). A smart memo with LTE module is required for this function. Live measurement is available for the following menu items: W400 standard procedure W400 contraction procedure W400 influence-minimised standard procedure W400 accelerated standard procedure G469 B3 distribution pipe G469 C3 inspection EDS2 data logger pressure test free external EN805 standard procedure EN805 contraction procedure FW602 pressure test FW602 simultaneous pressure test FW602 hydrostatic test FW602 differential pressure test G E101 MOP ≤ 100 mbar G E101 100 mbar < MOP ≤ 6 bar G E101 6 bar < MOP ≤ 16 bar W 101 standard procedure W 101 contraction procedure G-22/G-23 LP G-22/G-23 HP

In combination with the Esders Connect app (Android, iOS, Windows), enables the live measured values of the device to be displayed on a smartphone, tablet or PC (Android, iOS, Windows). The zero point can also be set manually and the alarm deactivated. The function only applies to the "above-ground testing" use case (HUNTER) respectively "leak detection" (HUNTER Tracer Gas).

Annual fee for sending measurements via the Esders Connect app (Android, iOS, Windows) by means of a flat rate. The annual fee must be paid in advance (prepaid) and is due at the time of booking. It is device-specific, can be renewed at any time and also be paid for several years in advance in order to plan the period of use long-term. When the term expires, measurements can still be sent. However, these are billed individually and debit the measurement quota. The credit for this can be recharged via the measurement package (item 222550).

Menu-guided test procedure for performing pressure tests on geothermal probes (EWS). The procedure is based on the contraction method in accordance with EN 805. Adaptations of the procedure to the specific characteristics of EWS are based on the contents of SIA 384/6.

Annual fee for sending measurements via the Esders Connect app (Android, iOS, Windows) by means of a flat rate. The annual fee must be paid in advance (prepaid) and is due at the time of booking. It is device-specific, can be renewed at any time and can also be paid for several years in advance in order to plan the period of use long-term. When the term expires, measurements can still be sent. However, these are billed individually and debit the measurement quota. The credit for this can be recharged via the measurement package (item 222550).

In combination with the Esders Connect app (Android, iOS, Windows), enables the live measured values of the device to be displayed on a smartphone, tablet or PC. The function only applies to the ‘Workspace monitoring’ mode. ATTENTION: In the event of deviations, the display in the gas analyser is always leading!

The Peaklogger option expands the Laser HUNTER with app-based measurement and structured documentation via the Esders Connect app. It is suitable for investigations in which potential leak points, such as flanges, fittings or other above-ground plant components, are to be specifically targeted and the methane peaks that occur are to be recorded in a traceable manner. The Laser HUNTER is carried using the waist belt, for example, while measurement control, concentration display and concentration history are handled entirely via the app. Measurement points can be selected directly during the measurement and documented with titles, comments, images and GPS positions, including via QR codes. Once the measurement is complete, a digital report is automatically generated that is clear, traceable and audit-proof, including images, measurement history and all documented measurement points. Ideal for plant inspections, recurring checks and investigations requiring documentation within the framework of the EU Methane Regulation.

Annual fee for sending measurements via the Esders Connect app (Android, iOS, Windows) by means of a flat rate. The annual fee must be paid in advance (prepaid) and is due at the time of booking. It is device-specific, can be renewed at any time and can also be paid for several years in advance in order to plan the period of use long-term. When the term expires, measurements can still be sent. However, these are billed individually and debit the measurement quota. The credit for this can be recharged via the measurement package (item 222550).

Menu-driven test procedures for pressure tests on water pipes according to rules and regulations of SVGW W4 (switzerland): - Contraction procedure - Normal procedure - accelerated normal procedure

Menu-guided test sequence for performing leak tests on test objects with water, e.g. open containers, tanks, reservoirs, pools. The leak test can be performed according to your own specifications using this menu option. During the test, the smart memo uses an EDS2 level probe to determine the current water level, as well as its possible drop, and finally generates an evaluation of the test in accordance with the test requirements entered. An EDS2 level probe is required to use this menu option. - Two-phase test possible: stabilisation phase, test phase - Test parameters can be freely configured (within certain limits): duration of stabilisation phase, duration of test phase, permissible level drop in test phase - Complete test report available digitally immediately after measurement - Additional test data and signature can be entered

Menu-guided test procedure for performing pressure tests on house installations using air pressure. When using the integrated pump in the Druktest max, the following test sequence can be performed fully automatically: pressure build-up, stabilization, testing, pressure release. The following parameters are freely adjustable: Test pressure (up to max. 1500 mbar) duration stabilization phase (0 to max. 60 min.) duration main test (up to max. 60 min.) Permissible pressure drop (0 - 1500 mbar) Integrated pump suitable for test volumes from min. 0.1 liters to max. 100 liters

The additional gas analysis option can be used to check whether ethane is present in a gas sample and, if so, in what proportion. This makes it possible to determine conclusively whether the gas source found is natural gas or another gas mixture. The measurement is carried out using HUNTER.

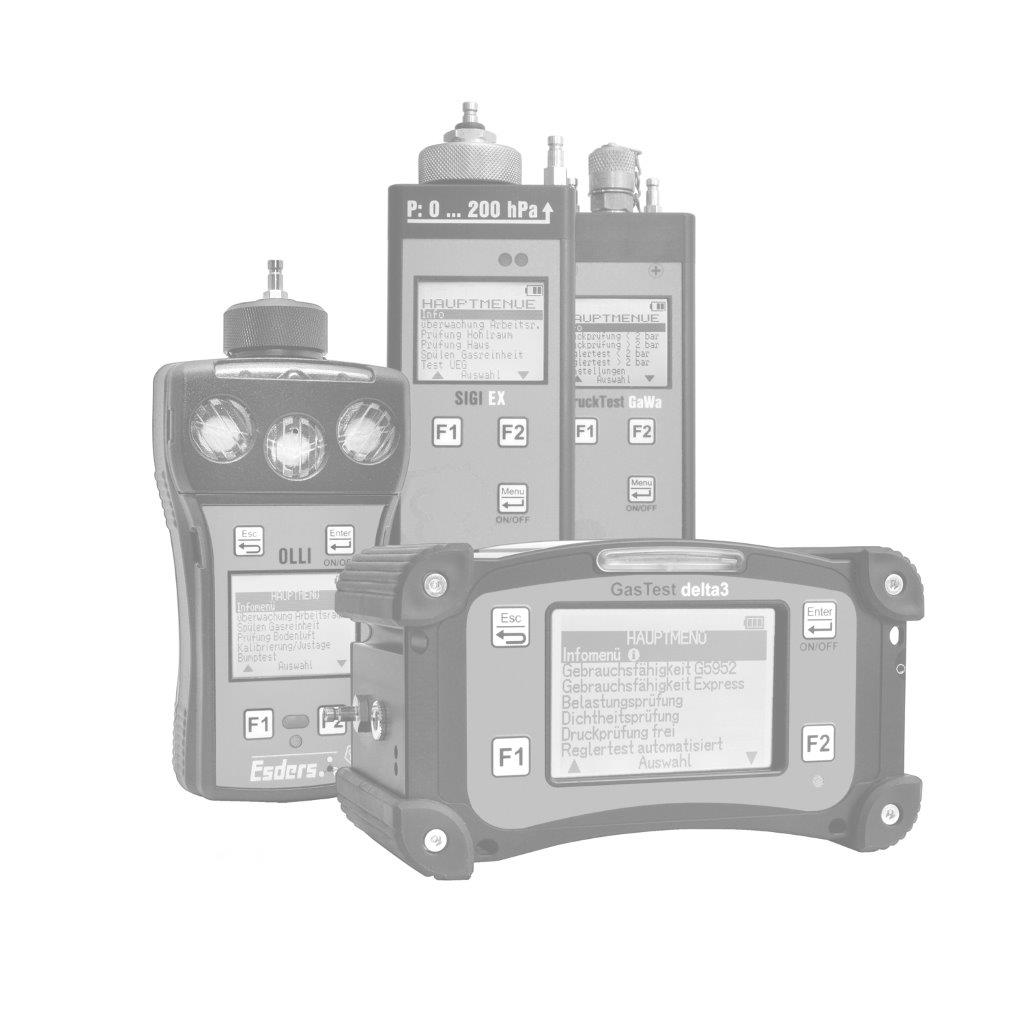

Menu-guided test procedure for pressure sewer pipes in operation. The option includes the two test procedures developed by Augsburg University of Applied Sciences on behalf of the Bavarian State Office for the Environment: - HSA standard procedure - HSA 20-minute test The fully automated test procedure requires an MPP (30-30/70-35), a pressure sensor with sufficient accuracy for the selected test pressure (minimum accuracy of 0.01 bar), an EDS2 flow meter and an EDS2 automatic drain.

Menu-guided test procedure for testing a water pipe in accordance with Swedish VAV regulation P78. The test requires an MPP 30-30 (item no. 401005) with the flow measurement option (item no. 405832), a 25 bar pressure sensor (item no. 361012) and a contact temperature sensor (item no. 222203).

Integrated pump with a flow rate of approx. 20 l/h. The pump transports the gas to the sensors via various available probes and a plug-in nipple with integrated filter screw connection installed on the top of the housing. The operating time is reduced by approx. 40% compared to the diffusion device. Instrument dimensions with integrated pump: 171 x 78 x 43 mm Weight: approx. 380 g
